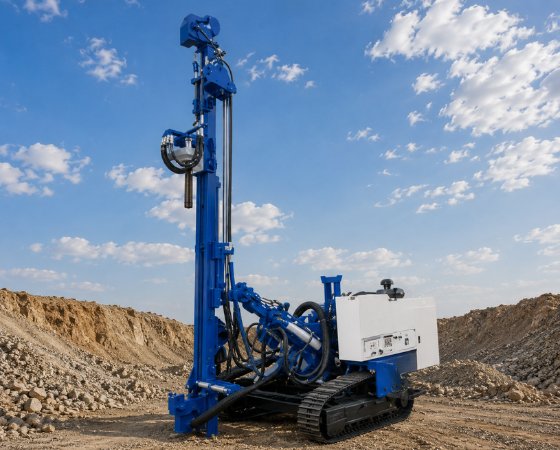

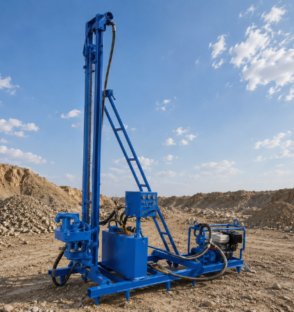

Diameter 3 1/2″ to 5″, depth up to 15m. It can drill vertical, horizontal and angle drill. Specifications Diameter : 3 1/2″ to 5″. Depth : 15m. Application : Drilling for blasting in quarries, dimension stone industry. Drilling Method : DTH Method. Drilling Angle : Vertical / Horizontal. Prime Mover : Power for the…
Availability: In Stock
| Diameter | : | 3 1/2″ to 5″. | |
|---|---|---|---|
| Depth | : | 15m. | |
| Application | : | Drilling for blasting in quarries, dimension stone industry. | |
| Drilling Method | : | DTH Method. | |
| Drilling Angle | : | Vertical / Horizontal. | |
| Prime Mover | : | Power for the hydraulics taken Deck engine. | |
| Rotary Head Torque | : | 1800NM. | |
| Rotary Head Speed | : | 0-50RPM. | |
| Pull Up Speed | : | 30m/min. | |
|---|---|---|---|
| Pull Up Force | : | 1500kg. | |
| Pull Down Speed | : | 30m/min. | |
| Pull Down Force | : | 1500kg. | |
| Tramming Speed | : | 2.5km/hr. | |
| Compressor | : | 380cfm – 200psi 450cfm – 150psi. | |
| Optional Attachments | : | Mines Safety Features, Dust Collector, Centralized lubrication system, Dust suppression system. | |
