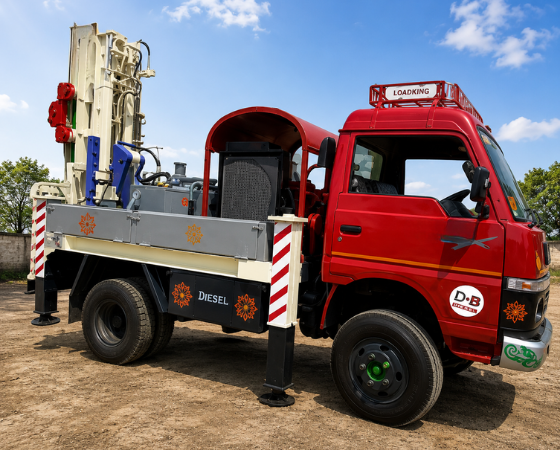

6″ to 12″ Dia bore holes upto 300mtrs (1000fts). Prime mover from deck engine. Work method DTH method using suitable compressor. Specifications Capacity : 6 1/2″ Dia bore hole up to 300mtrs (1000fts). Prime Mover : Through PTO drive from separate deck engine. Work Method : Rotation with direct circulation, nucleus destruction with bleeding…
Availability: In Stock
| Capacity | : | 6 1/2″ Dia bore hole up to 300mtrs (1000fts). | |
|---|---|---|---|
| Prime Mover | : | Through PTO drive from separate deck engine. | |
| Work Method | : | Rotation with direct circulation, nucleus destruction with bleeding by water, air or foam. | |
| Mast | : | Medium duty channel structure, max capacity – 12tons (25000lbs), height – 9fts, rod handling capacity – 1.5mtrs (5fts). | |
| Pull Up and Pull Down | : | By means hydraulic cylinder and wire rope, reeving ratio 1:2, max pull up force – 4300kgs, max pull down speed – 17mtrs / min (56fts / min), max pull down force – 2900kgs,max pull down speed – 24mtrs / min (79fts / min). | |
| Hydraulic System | : | 160kgs / cm2 (2250psi). | |
|---|---|---|---|
| Rotary Head | : | Rotary head is powered by one hydraulic motor, max torque – 165kgs -mtrs (14333 in – lbs), max speed – 0 to 80rpm. | |
| Jacks | : | Four Hydraulic Jacks. | |
| Water Injection Pump | : | 36 lpm powered by hydraulic motor. | |
| Compressor | : | 1100cfm / 300psi. | |
