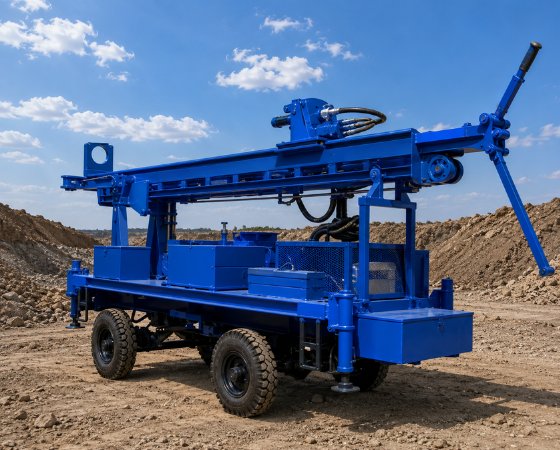

300mm to 1200mm bore hole up to 50mtrs (150fts) by rotary using mud pump. Trolley mounted rig with power source for hydraulics from suitable diesel deck engine. Specifications Diameter : 300mm to 1200mm Dia. Depth : 50mtrs Application : Pilling / Water well drilling rig. Formation : Soft / Hard Prime Mover :…
Availability: In Stock
| Diameter | : | 300mm to 1200mm Dia. | |
|---|---|---|---|
| Depth | : | 50mtrs | |
| Application | : | Pilling / Water well drilling rig. | |
| Formation | : | Soft / Hard | |
| Prime Mover | : | Power source for hydraulic from suitable diesel deck engine of 180bhp. | |
| Mounting | : | The rig unit is mounted on a suitable single axle trolley. | |
| Mast | : | Heavy duty channel structure max capacity-8tons(17600lbs), Height – 15fts, rod handling capacity. | |
| Pull Up Speed | : | 6.5mtrs / min (23fts / min). | |
|---|---|---|---|
| Pull Up Force | : | 3000kgs (6600lbs). | |
| Pull Down Speed | : | 10.5mtrs / min (4.5fts / min). | |
| Pull Down Force | : | 2000kgs (4400lbs). | |
| Hydraulic System | : | 140kgs / cm2 (2000psi). | |
| Jacks | : | Four Hydraulic Jack. | |
| Mud pump | : | Suitable mud pump. | |
