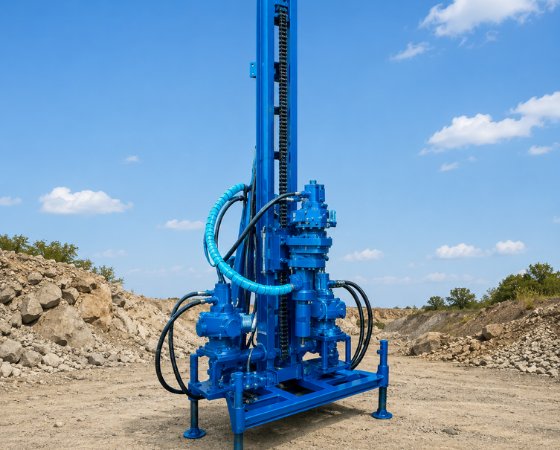

6″ to 8″ Dia bore holes to a depth of 250mtrs (800fts) using 3.5″ Drill Rod. Prime mover from compressor air for pneumatic. DTH Method using suitable compressor. Specifications Diameter : 5 to 8″ Dia bore hole. Depth : 250mtrs (800fts). Application : Water Well Drilling Rig. Formation : Soft / Hard. Prime Mover…
Availability: In Stock
| Diameter | : | 5 to 8″ Dia bore hole. |
|---|---|---|
| Depth | : | 250mtrs (800fts). |
| Application | : | Water Well Drilling Rig. |
| Formation | : | Soft / Hard. |
| Prime Mover | : | Pneumatic operation through air compressor. |
| Mast | : | Stand base. |
| Pull Up Speed | : | 8.5mtrs / min (28fts / min). |
|---|---|---|
| Pull Up Force | : | 2694kgs (5926lbs). |
| Pull Down Speed | : | 12.5mtrs / min |
| Pull Down Force | : | 1814kgs (3990lbs). |
| Jacks | : | Manual screw jack. |
| Compressor | : | 1100cfm / 300psi. |
