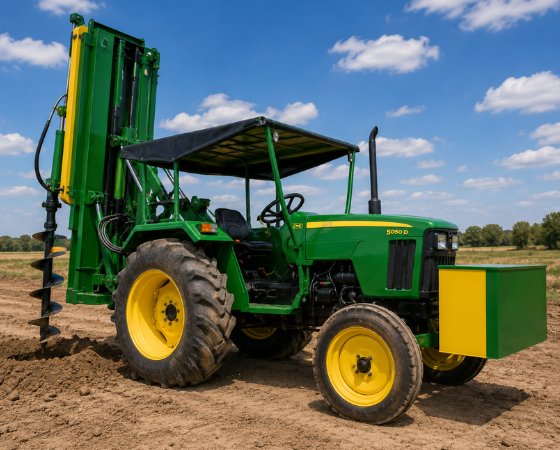

6″ to 14″ Dia bore holes upto 1.5mtrs (5fts). rime mover from tractor engine. Rotation with tractor PTO using hydraulic pump. Specifications Diameter : 355mm Depth : up to 1.5 m (4.92 ft) Application : Auger Drill for Solar Plant Formation : Soft Prime Mover : From tractor engine and rotation from PTO Mounting…
Availability: In Stock
| Diameter | : | 355mm | |
|---|---|---|---|
| Depth | : | up to 1.5 m (4.92 ft) | |
| Application | : | Auger Drill for Solar Plant | |
| Formation | : | Soft | |
| Prime Mover | : | From tractor engine and rotation from PTO | |
| Mounting | : | The rig unit is mounted on suitable Tractor |
|---|---|---|
| Mast | : | Medium duty channel structure weight- 450 Kg Height – 2,133 mm |
| Jacks | : | Two Manual Jack and Two screw Type |
