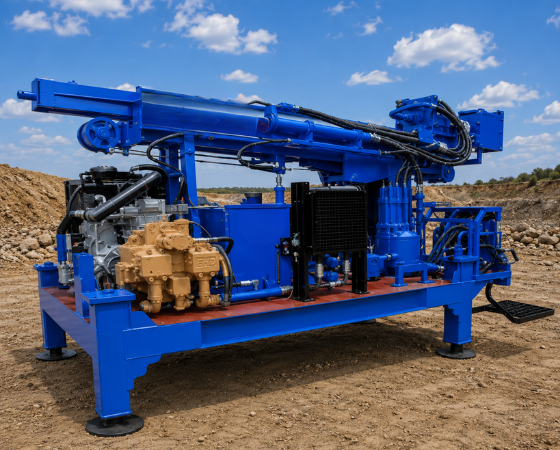

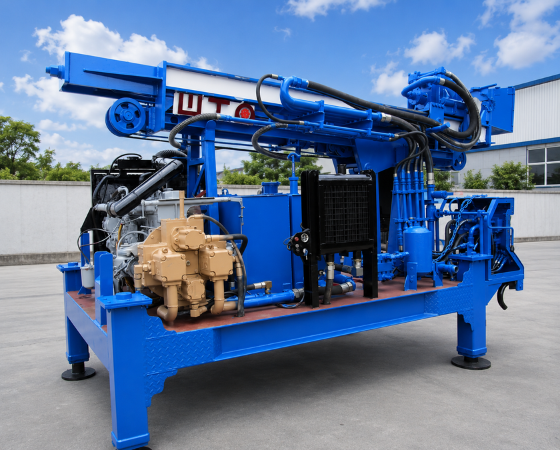

EHD Skid 150 4 4 to 8dia bore holes upto 175 mtrs (600fts). Prime Mover Through Deck engine. Rotation with direct circulation, nucleus destruction with bleeding by Rotary Method. Specifications Diameter : 6 1/2″ Dia bore holes Depth : 200mtrs Application : Water Well Drilling Rig Formation : Hard / Soft Prime Mover :…
Availability: In Stock
| Diameter | : | 6 1/2″ Dia bore holes | |
|---|---|---|---|
| Depth | : | 200mtrs | |
| Application | : | Water Well Drilling Rig | |
| Formation | : | Hard / Soft | |
| Prime Mover | : | Power source for hydraulic from suitable deck engine of 160bhp | |
| Mounting | : | The rig unit is mounted on a suitable skid platform. | |
| Mast | : | Heavy duty channel structure mast maximum capacity – 4tons, height – 1.5mtrs(5fts), rod handling capacity. | |
| Pull Up Speed | : | 6.5mtrs / min (23fts / min). |
|---|---|---|
| Pull Up Force | : | 3000kgs (6000lbs). |
| Pull Down Speed | : | 10.5mtrs / min (4.5fts / min). |
| Pull Down Force | : | 2000kgs (4400lbs). |
| Hydraulic System | : | 140kgs/cm2 (2000psi). |
| Jacks | : | Four Hydraulic Jack. |
| Compressor | : | Suitable Compressor |
