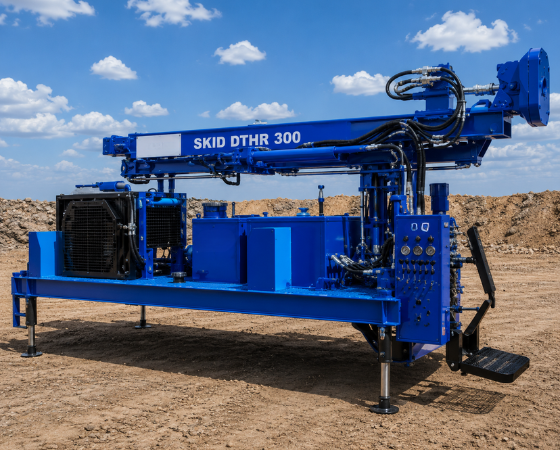

6″ to 12″ Dia bore holes up to 300mtrs (1000fts). Prime mover through deck engine. Rotation with direct circulation nucleus destruction with bleeding by rotary method. Specifications Diameter : 6 1/2″ dia bore holes Depth : 200 mtrs Application : Water well drilling rig Formation : Hard/soft Prime mover : Power source for hydraulic…
Availability: In Stock
| Diameter | : | 6 1/2″ dia bore holes | |
|---|---|---|---|
| Depth | : | 200 mtrs | |
| Application | : | Water well drilling rig | |
| Formation | : | Hard/soft | |
| Prime mover | : | Power source for hydraulic from suitable deck engine of 230bhp. | |
| Mounting | : | The rig unit is mounted on a suitable skid platform. | |
| Mast | : | Heavy duty channel structure mast maximim capacity- 4tons, height- 1.5 mtr(5feet), rod handling capacity | |
| Pull up speed | : | 6.5 mtr/min (23 ft/min) |
|---|---|---|
| Pull up force | : | 3000 kg (6000 Ibs) |
| Pull down speed | : | 10.5 mtr/min (4.5 f/min) |
| Pull down force | : | 2000 kg (4400 Ibs) |
| Hydraulic system | : | 140 kg/cm2 (2000 psi) |
| Jacks | : | Four hydraulie jacks |
| Compressor | : | Suitable compressor |
