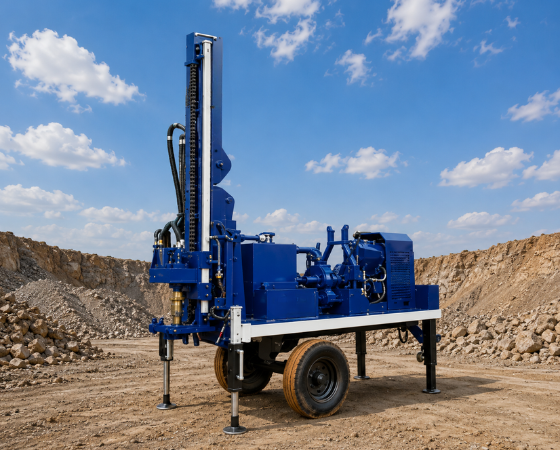

EHD Trolley 500 4 1/2″ to 6 ” dia bore hole up to 150 mtrs (500fts). Prime Mover Trolley mounted rig with power source for hydraulics from suitable diesel deck engine of 37 bhp. 6 1/2″ to 8″ dia (in steps) bore hole up to 100 mtrs by rotary using mud pump. Specifications Diameter…
Availability: In Stock
| Diameter | : | 300mm to 600mm Dia. | |
|---|---|---|---|
| Depth | : | 50mtrs | |
| Application | : | Water Well Drilling Rig/Pilling | |
| Formation | : | Soft / Hard | |
| Prime Mover | : | From Tractor Engine. | |
| Mounting | : | The rig unit is mounted on a suitable Tractor. | |
| Mast | : | Box type structure max capacity – 10tons (22000 Ibs) Height-5.0mtr (16.5 ft) Rod handling capacity 3mtrs. | |
| Pull Up Speed | : | 15 mtrs/min (49fts/min) | |
|---|---|---|---|
| Pull Up Force | : | 4500 kgs(9900 Ibs). | |
| Pull Down Speed | : | 34 mtrs/min(112 fts/min). | |
| Pull Down Force | : | 3000 kgs (6600 Ibs). | |
| Hydraulic System | : | 160 kg/cm2(2250 psi). | |
| Jacks | : | Four Box Type Hydraulic Jack. | |
| Mud Pump | : | Suitable Compressor / Mud Pump. | |
